Mini 58mm 5890k Thermal Printer Ticket POS printer Thermal Receipt Printer USB Interface Restaurant Bill PrinterZJ5890K

Basic Info and Key Features

Item Name: Thermal Receipt Printer
Item Number: POS-5890K

• Suitable for all types of commercial retail POS systems
• Light in weight and smart in shape
• High-quality printing and low cost
• Low noise and high-speed printing
• Support cash drawer driver

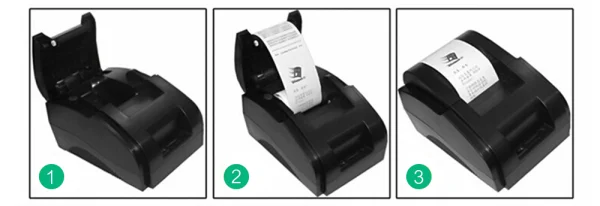

• Easy for paper installation, Easy maintenance and excellent structure
• Low power consumption and low operating costs ( No Ribbons or Ink cartridges )

Technical Specifications

Print Method: Thermal Line Printing
Print Font Size: 384dot/Line ; ANK Character

Font A: 12*24 dots,1.5(W)*3.0(H)mm
Chinese simplified/traditional: 24*24 dots,3.0(W)*3.0(H)mm
Printer Character: GB one/two Chinese character 24*24 dots, Support Taiwan,Hong kong traditional
Extend Character:

• OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe
• Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/
• OEM858/IranII/Latvian/ Arabic/PT151,1251/OEM747/
• WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

Printer Parameters

Support NV LOGO Print
Print Speed: 90mm/sec
Interface: USB Port
Roll Diameter: 50 mm
Print Thickness: 0.06-0.08mm
Unit Weight: 800 g

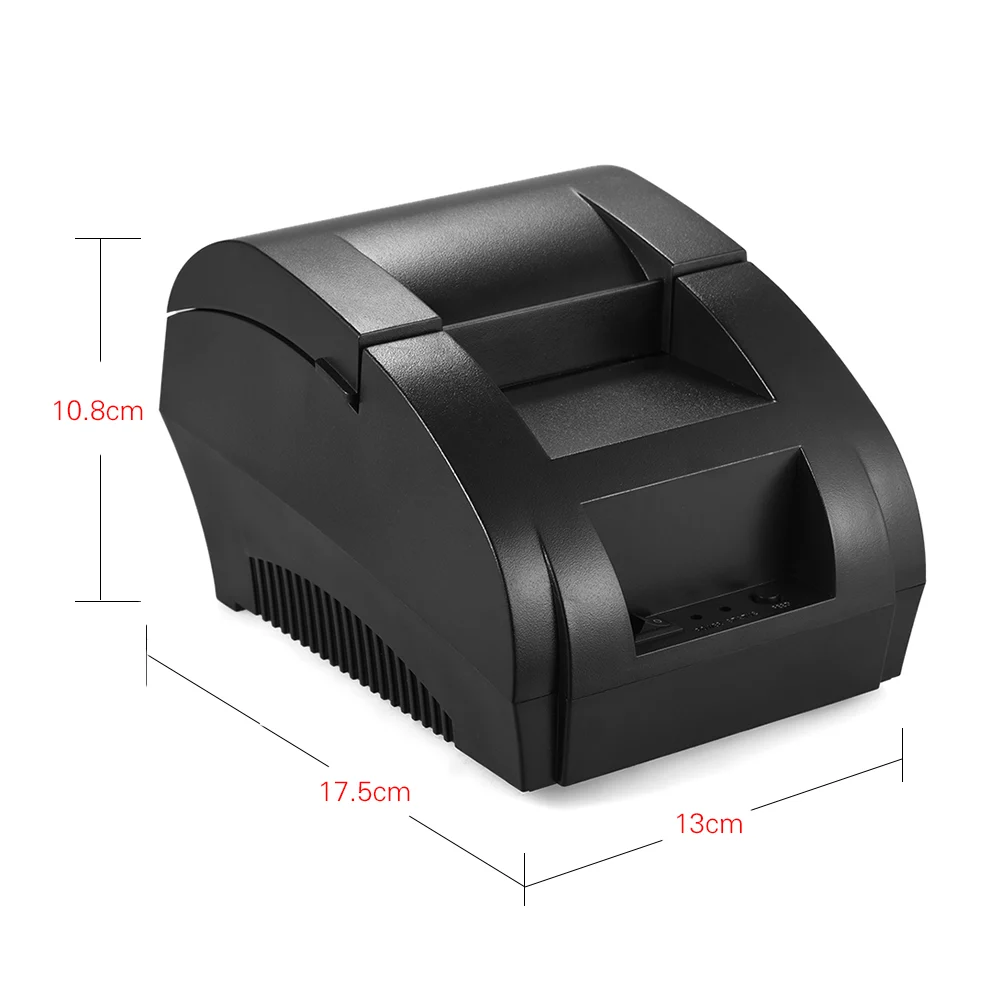

Dimension: 175*130*110mm
Power Adapter: DC 12V/3A
Cash Drawer Control: DC 12V/1A
Reliability Print: 100km
Drivers: Win 9X /Win 2000 /Win 2003/Win XP/Win Vista/Win 7 /Win8/Linux
Compatible With EPSON, SAMSUNG System
Print Command: Compatible With Command ESC/POS

Paper Exit : print paper exit

Feed Button: Printer self-inspection, Model change, Paper feed
The State Of Light: Red light flashing means no paper ; Red light always lit means normal.
Power Light: Blue light always lit means normal ; Blue light off means not connect to power or abnormal.
Power Control Button: Control the power switch

Power Interface: Connect 110V-240V
USB Interface : Connect Tablet/PC via USB-B data cable
Cash Drawer Interface : Connect cash drawer via data cable
